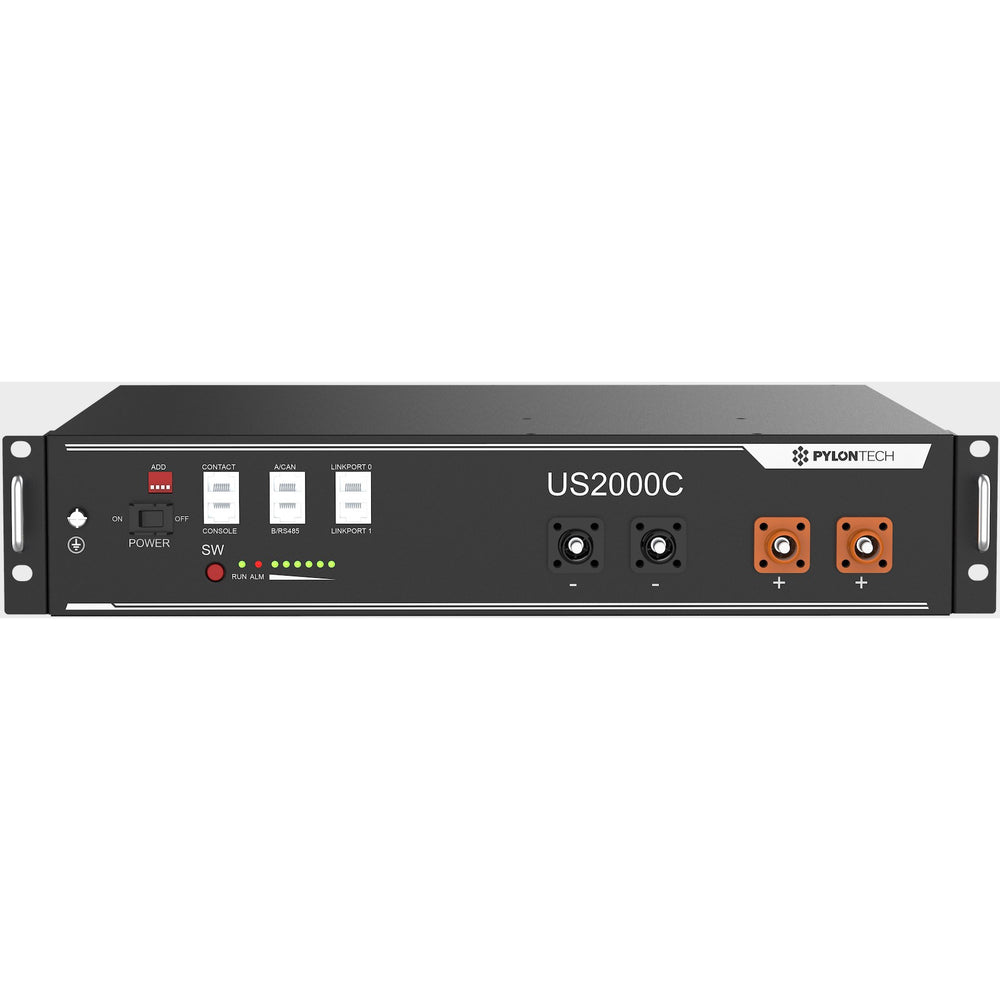

PYLON-US2000C, US2000C series is an ideal solution for residential storage applications, with standard 48V/50AH specification, up to 95% usable capacity and 6,000 cycle-life warranty.
Product Features
Modular design for ease of expansion.
95% Depth of Discharge (DoD).
Usable capacity 2280Wh.
Parallel capability of up to 16 units.
Intelligent BMS protecting battery cells.
6000 Cycles.
RS485 and CAN compatible.
Comes with 7-year standard warranty which is extendable to 10-years upon registration.
Installation flexibility (Rack mount or Wall-mount)
Supplier Part No: PYLON-US2000C
Weight: 23 kg
Battery Type: Lithium Ion
Nominal Energy: 2400 Wh
Depth of discharge: 95.00 %
Voltage: 48 V
Continuous Discharge Rate (Normal Use):1200 W
Maximum Discharge Rate (5 Minutes): 2400 W
Surge Discharge Rate (15 Seconds): 4320 W
Maximum Charge Rate (5 Minutes): 2400 W
Product brochure: https://shorturl.at/EQZ35
You can register the Pylon US2000C for an additional 3 years of manufacturer warranty for free. Go to http://www.pylontech.com.cn/service/support and complete the information in the 'sign up battery' page.
Important
MAX DISCHARGE AND CHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Due to the ongoing effect of Covid-19 and the worldwide chip shortage, certain suppliers had to resort to alternative component suppliers. This has affected the compatibility of specific inverter and battery combinations. Please see the Application Note New Pylontech firmware or Application Note Kodak user settings for more info.
Notes
The US2000C can be used to expand an existing US2000 bank. Please note, the US2000C needs to be used as the master battery when used to expand an existing US2000 bank.
SA ONLY: Please note US2000C and US3000C batteries require different pin out on the communication cable when used with Solis RHI Hybrid inverters. Standard cable used with US2000B and US3000 will not work. Please make sure the correct cable is being used.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
